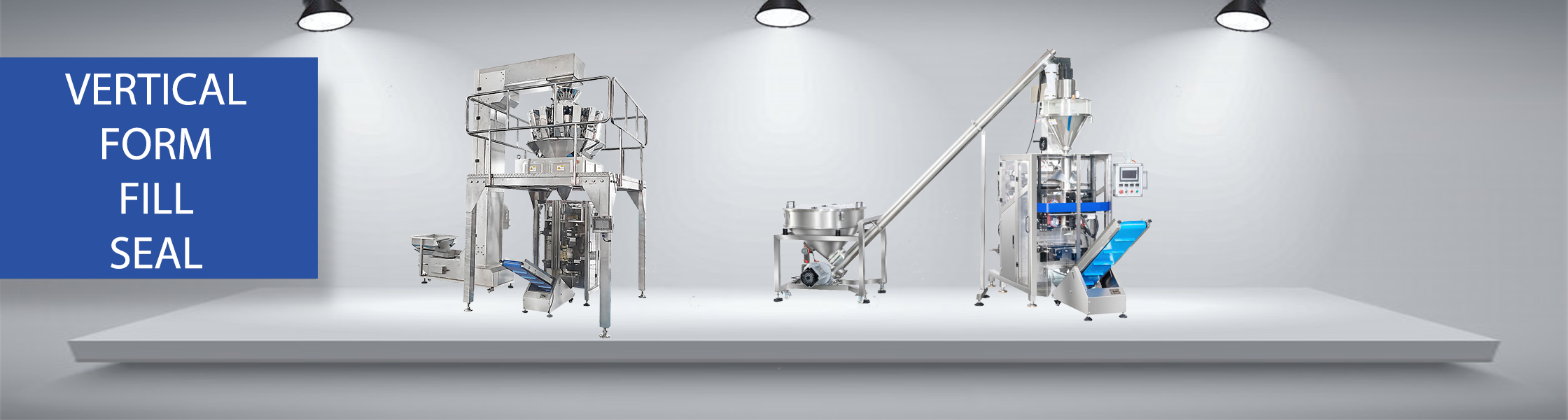

Vertical Form-Fill-Seal Packaging Machine

Overview of Vertical Form-Fill-Seal Packaging Machinery

A Vertical Form-Fill-Seal (VFFS) machine produces pillow packs, three-side seals, four-side seals, and irregular-shaped or gusset sachets. These packs are automatically filled and sealed before being hermetically closed.

Customisation and Flexibility

Our VFFS machinery covers a wide range of applications and can be customised to meet your production needs. The individual modules—unwinder, pouch former, and dosing-sealing—are available in various versions, tailored to your specific requirements.

Filling Mechanisms for Different Product Types

VFFS systems include different filling mechanisms to handle various product types:

• Auger screw fillers are ideal for powders such as spices, flour, yeast, cocoa powder, protein powder, and washing powders.
• Measuring cups are perfect for free-flowing products like sugar, various nuts, and popcorn.
• Multi-head weighers ensure precise weight combinations for mixed products such as snack assortments, chocolates, or frozen foods. They are also used for single product types like screws, beans, cereals, coffee beans, and candies.
• Liquid/paste pumps handle thick products such as sauces (ketchup, hot sauce, mayonnaise), shampoos, creams, lotions, liquid medications, and creamy foods like peanut butter, yogurt, and chocolate spread.

These machines ensure efficiency, accuracy, and consistent packaging quality, making them indispensable in many industries.

Versatility Across Industries

Vertical FFS machines are versatile and used across a range of industries, including:

• Food: Spices, flour, sugar, coffee, snacks, dried fruits, frozen foods, and candies.
• Pharmaceuticals: Powders, tablets, and capsules.
• Chemicals: Granules, powdered detergents, and fertilizers.

Tailored Filling Mechanisms for Each Industry

Different filling mechanisms are used for different applications:

• Auger screw fillers excel at dispensing fine powders.
• Measuring cups are ideal for uniform granules.
• Multi-head weighers offer precision when handling bulk or mixed items.
• Liquid/paste pumps ensure consistent dispensing of thick or viscous products.

VFFS technology accommodates various products, providing hygienic, efficient packaging solutions for diverse industries.

Key Benefits of VFFS Technology

VFFS machines offer several key advantages:

• Filling System Compatibility: Options for auger screws, measuring cups, multi-head weighers, or liquid/paste pumps.
• Flexible Bag Styles: Handles pillow packs, side gusseted bags, pouches, 3-side seals, 4-side seals, and more.
• Precise Filling: Accurate dosing mechanisms that reduce waste.
• Automatic Edge Guidance, Film Tracking, and Centering Drive Systems: These features enhance packaging accuracy and consistency.

Operational Efficiency and Environmental Impact

• Simplified Operation: With bilingual, touch-screen PLC controls and automatic fault detection, the system is easy to use and troubleshoot.
• Compatibility with Small and Medium Packaging Lines: Integrates easily into existing production setups.
• Minimal Carbon Footprint: The machine operates efficiently with a normal electrical power supply, avoiding the need for special power sources.
• Modern, Easy-to-Clean Design: A stainless steel design with a small clearance of less than 2m².
• Specialised Sealing Bars: Integrated temperature control ensures optimal sealing.
• High Productivity: The machine achieves speeds of over 60 bags per minute.
• Greater Flexibility: Adjustable packing speeds and the ability to package various shapes and sizes.

Film Forming and Bag Creation

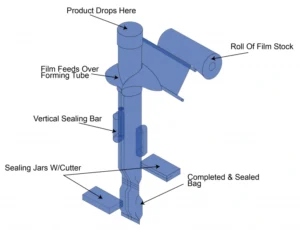

VFFS packaging machinery feeds a roll of polyethylene terephthalate (PET), biaxially-oriented polypropylene (BOPP), polyethylene (PE), or laminated film over a forming tube. This shapes the film into the desired packaging size. The bottom and vertical seals are then applied where the two edges of the film meet. The machine’s programming automatically controls the bag length.

Filling and Sealing Process

Once the bag is formed, the filling process begins. The machine is synchronised with an auger, multi-head scale, or volumetric filler, ensuring precise dosing and filling. Sensors detect when the bag is filled correctly before the top seal is applied, and the bag is cut away.

Additional Features and Packaging Options

Depending on the package’s function, additional features like batch/expiration dates, tear notches, or hole punches can be added. The filled bags are then transferred to other machines, such as cartoning machines, to place items like spices or cereals into boxes, or to baling machines for bulk packaging.
