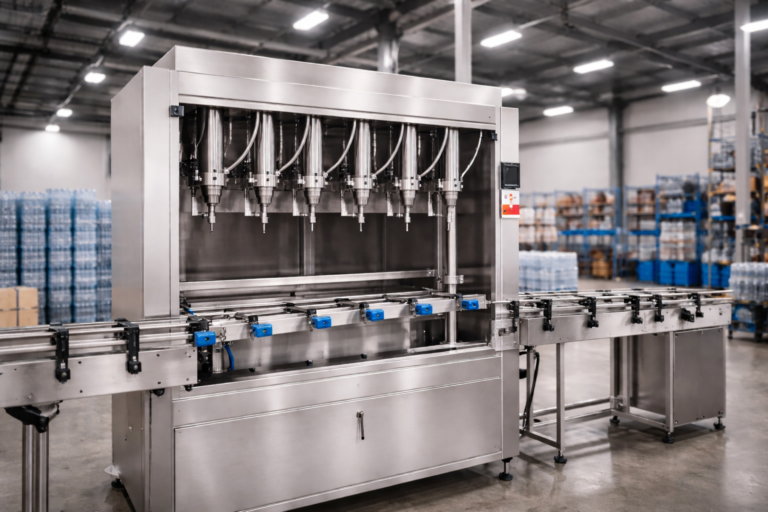

Your water bottle filler machine's jammed again. Third time this week, production's stopped cold, and your team's standing around while you're losing thousands in output. Sound familiar?
You're not alone — most SA manufacturers battle the same bottlenecks, but here's the thing: those jams aren't random. They're symptoms of fixable problems that separate reliable filling lines from production nightmares. Let's sort out what's actually going wrong and how to stop it for good.
Table of Contents
Infeed star wheel misalignment is your number one enemy. Bottles entering at wrong angles hit fill nozzles and create cascading backups that shut down your entire line in seconds. You'll see bottles tipping, product spraying everywhere, and your whole crew scrambling to clear the mess.
Conveyor speed mismatch between stations means bottles bunch up or spread too far apart, both triggering sensors that stop production dead. When your filler runs at 120 bottles per minute but your infeed delivers 130, you've got a pileup waiting to happen. When it's the reverse, you're starving the filler and losing throughput you're already paying for.
Cheap or worn guide rails let bottles wobble during filling, causing inconsistent fills that jam your capping station when caps don't seat properly. That wobble seems minor until you realize every fifth bottle is getting shorted or overfilled, and downstream equipment can't handle the variation.
Most manufacturers blame the machine when it's actually the bottle quality. Inconsistent PET bottle wall thickness throws off gripper tension and creates handling nightmares. Your supplier might be within spec on paper, but SA temperature variations during transport and storage mean those bottles arrive with different rigidity than what your machine expects.

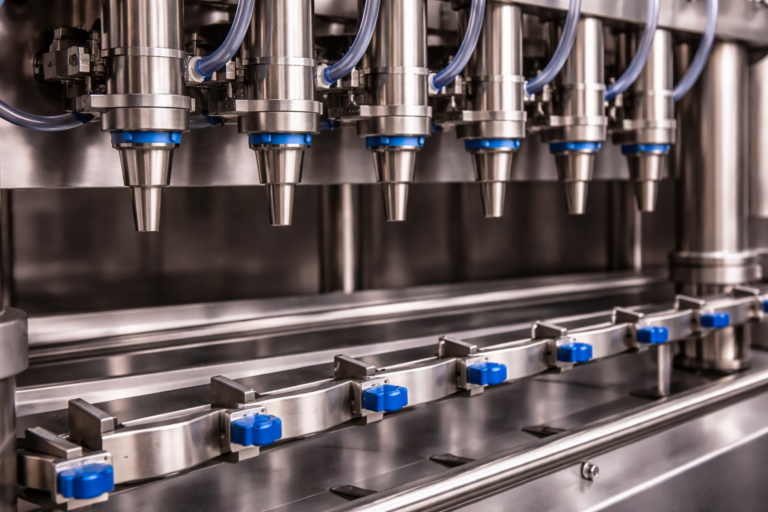

Fill nozzle height set too low creates splashback and overflow that triggers your capper's safety sensors, stopping the line while clean bottles queue up behind. You're wiping down sensors every hour instead of filling bottles. Set it too high and you're aerating product, creating foam that prevents proper cap sealing.
Running multiple bottle sizes without adjusting nozzle spacing means smaller bottles get missed fills while larger ones get double-dosed. Both scenarios jam your labeler downstream because the system expects uniform bottles. Quick changeovers aren't quick if you're skipping the nozzle adjustment step.
Worn nozzle seals leak during the fill cycle, creating sticky residue on bottle necks that prevents caps from threading correctly. Those seals are cheap to replace but expensive to ignore — one leaky nozzle contaminates dozens of bottles before you catch it. The sticky necks create friction in your capper that gradually throws timing off until something jams hard.
No-drip valves that aren't properly maintained leave product drips on conveyors, making bottles slip and slide out of position heading into the capper. You've built an accidental slip-and-slide for your bottles. They're skating into guide rails sideways instead of tracking straight, and your sensors are going mental trying to keep up.
Key Takeaways
The handoff between filling and capping is where most jams breed. Bottles need exact spacing and timing or caps misalign and trigger emergency stops. That transfer point is the Achilles heel of separate-station setups — bottles lose momentum, drift off center, or bunch up in the gap.
Label applicator sensors get covered in condensation from cold-fill operations, causing false reads that stop the labeler even when bottles are positioned perfectly. Your water's cold, the air's humid, and those sensors fog up faster than you can clean them. Every false stop costs you minutes of production and frays your operators' nerves.
Your capping torque is probably set wrong. Too tight cracks bottles, too loose means caps fall off and jam the labeler's outfeed. There's a sweet spot that works for your specific bottle-cap combination, and it shifts with temperature and bottle batch variations. Finding it once isn't enough — you need to verify it regularly.
Conveyor belt tension changes throughout the day as machinery heats up, gradually throwing off the timing between filler, capper, and labeler until something jams. Morning startup runs smooth, but by lunch you're fighting stoppages. That's thermal expansion doing its thing, and your setup needs to account for it.
Check out our bottle filler capper labeler range to see how integrated systems eliminate these handoff nightmares entirely.
Factory default timing settings assume perfect conditions — European testing labs with climate control and consistent bottle specs. SA manufacturers need to adjust for ambient temperature swings that affect PET bottle rigidity throughout the day. Your morning bottles handle differently than your afternoon bottles, but your machine's running the same settings.
If your filler-capper-labeler isn't communicating through a single PLC, you're fighting three separate timing systems that drift out of sync hourly. Each machine thinks it's doing its job perfectly while the handoffs between them create chaos. It's like three drummers playing different tempos — eventually someone's going to crash.
Accumulation tables between stations seem helpful but actually create dead zones where bottles lose momentum and bunch up unpredictably. You've added buffer capacity but also added variability. Those tables look good on the factory layout, but they're breeding grounds for timing issues.
Photo-eye sensors on your filling station need weekly cleaning and monthly recalibration. Condensation and product dust create false triggers that halt production for ghost jams — your line stops, you inspect, find nothing wrong, restart, and lose 10 minutes. Multiply that by twice a shift and you've lost serious output.
Label presence sensors work until they don't. Improper sensitivity means they either ignore missing labels or flag phantom errors on perfectly labeled bottles. You're either shipping unlabeled product or manually overriding good bottles — both scenarios waste time and money.
Cap detection sensors positioned wrong will pass defective caps through to labeling where they cause real jams, or reject good bottles unnecessarily. A millimeter makes the difference between catching problems early and creating bigger problems downstream. Position them where they can actually see what matters.
Integrated systems let you calibrate all sensors from one interface in minutes instead of climbing around three separate machines for an hour. You're making system-wide adjustments that keep everything synchronized instead of fixing one station while the others drift further out of spec.
Look for servo-driven systems instead of mechanical cam-driven setups. Servos adjust on the fly while cams need manual intervention every time something goes sideways. When a bottle's slightly off position, servo systems compensate automatically. Cam systems jam and wait for you to fix it.
Integrated filler-capper-labeler machines eliminate the inter-station handoffs where 40% of jams originate because everything runs on synchronized timing. You've gone from three separate timing systems fighting each other to one cohesive system that actually communicates. The difference in jam frequency is dramatic.
Stainless steel construction throughout contact points prevents the wear that causes gradual misalignment and increasing jam frequency over months. Cheap guide rails and plastic components might save you money upfront, but you'll pay it back in downtime and replacement parts. Stainless costs more once — plastic costs more forever.
Test any machine with your actual bottles under SA conditions. European bottle specs don't match local PET supplier tolerances, and that gap creates jam nightmares. Bring your bottles, your caps, your labels, and run a proper test cycle before signing anything. If the supplier won't let you test with your materials, walk away.
We've helped dozens of SA manufacturers solve these exact issues. Contact us to discuss your specific setup and get straight answers about what's causing your jams.
| What Causes Jams | Separate Stations | Integrated Filler-Capper-Labeler |
|---|---|---|
| Bottle handoff points | 3-4 transfer zones | Single continuous flow |
| Timing synchronization | Manual coordination needed | Factory-synced from setup |
| Sensor conflicts | Multiple systems to align | Unified sensor network |
| Adjustment complexity | Each station set separately | One control interface |
| Jam diagnosis time | Check 3+ machines | Pinpoint exact stage |
Get in touch
SA Packman works with manufacturers across South Africa to find the right machine for your line — and we give you a straight answer, not a sales pitch. Get in touch with our team at sapackman.co.za for a no-obligation quote.
Contact SA PackmanQ: Why does my water bottle filler machine jam more in summer than winter?
Temperature affects PET bottle rigidity — warmer bottles are more flexible and deform slightly under gripper pressure, throwing off alignment. Your guide rails and gripper tension need seasonal adjustment to compensate for SA's temperature swings. Most manufacturers set it once and wonder why jam rates spike in December. The bottles arriving in January aren't the same as the bottles arriving in July, even from the same supplier.
Q: How often should I recalibrate my bottle filling line to prevent jams?
Weekly sensor checks, monthly full calibration, and immediate recalibration after every bottle size changeover. Most jam issues develop gradually as components drift out of spec — staying ahead of that drift keeps your line running. Integrated filler-capper-labeler systems make calibration faster since everything's controlled from one interface. You're looking at 10 minutes weekly versus an hour climbing around separate machines.
Q: Can I fix jamming issues by slowing down my automatic bottle filling machine?
Slowing down masks the problem temporarily but kills your throughput and still doesn't fix the root cause. Proper alignment, timing, and sensor calibration let you run at designed speeds without jams. If you're throttling speed to avoid stoppages, something's fundamentally wrong with your setup. You didn't buy a high-speed filler to run it at half capacity — fix the actual problem instead of working around it.
Q: What's the difference between a jam and a normal production stop on bottle fillers?
A jam is unplanned chaos — bottles wedged sideways, product spilled, manual intervention needed. Normal stops are controlled — machine detects an issue, stops cleanly, gives you a clear error code. Jams mean you're clearing wreckage. Stops mean you're addressing a flagged condition. If you're getting jams instead of clean stops, your sensors and safety systems aren't properly configured to catch issues before they cascade.
Q: Should I retrofit my existing bottle filler or buy an integrated system?
Depends on what you're fighting. If your current setup jams constantly despite proper maintenance and calibration, you're probably dealing with fundamental design limitations that retrofitting won't solve. Integrated systems eliminate the handoff points where most jams originate. If your filler itself runs fine but the transfers to capper and labeler cause problems, integration makes sense. If the filler itself is the issue, you need a better filler first.
Q: How do I know if my water bottle filler machine jams are operator error or equipment problems?
Track when jams happen and who's running the line. If jams spike with certain operators, you've got training issues. If jams happen regardless of who's operating and when, it's equipment. Good test: have your best operator run the line for a full shift — if jams persist, it's not operator error. Also check if jams follow patterns like time of day, bottle batches, or specific bottle sizes. Patterns point to equipment issues, randomness suggests operator variables.
